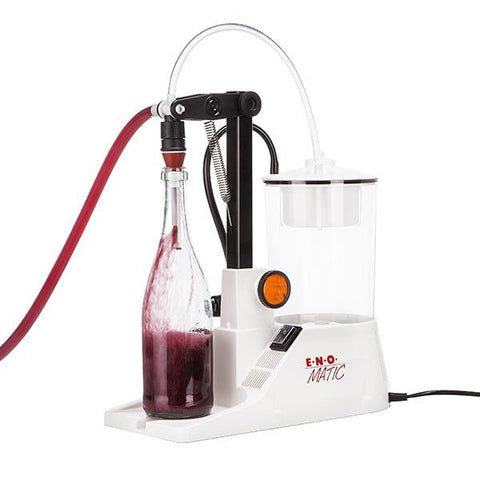

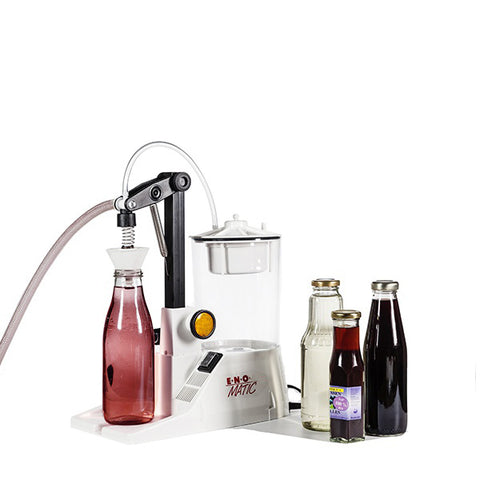

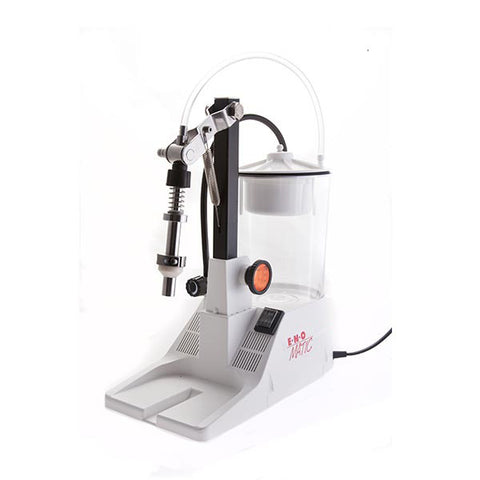

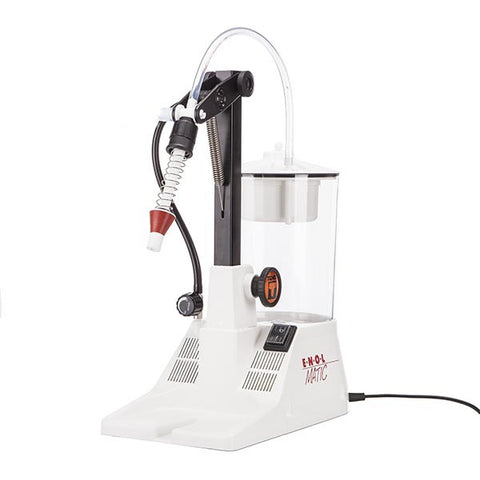

Enolmatic Single Head Vacuum Filler - FL-02a
The Enolmatic Single head vacuum filler for glass or rigid plastic / small plastic bottles.
Compact, self-contained bench-top units. Bottles are placed under the nozzle and a special pump draws a vacuum, causing liquid to be sucked out of your feed vessel and filled into the bottle to a pre-set level.
The fillers are suitable for non-carbonated, non foaming liquids, including wines and liqueurs, bottle-conditioned beer, still cider, oils and thin purees/sauces without particles, toiletries and cleaning chemicals, of low viscosity and are easily adaptable for most shapes and sizes of bottle and jar. Suitable only for GLASS or other rigid-walled containers.

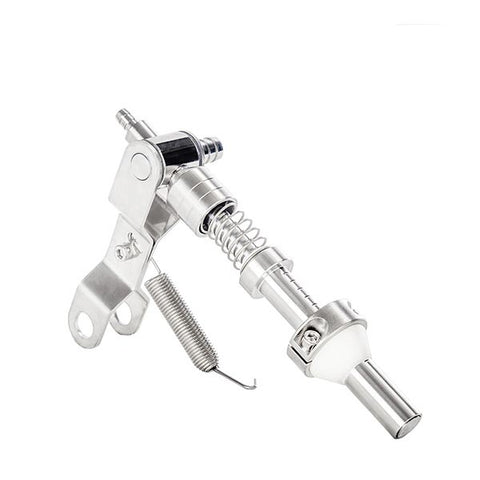

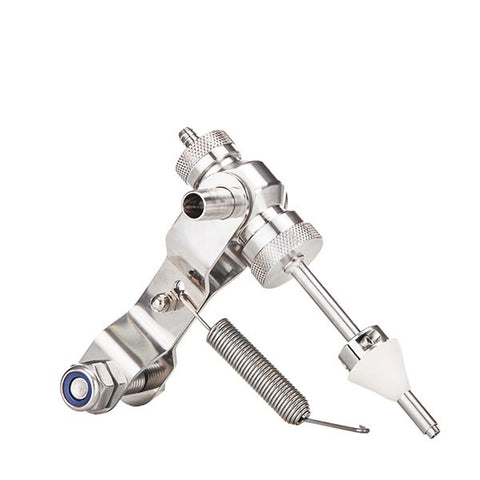

Standard nozzles fit bottles with min.18mm neck. Mini -nozzles available for min. 8mm necks, Stainless versions available, and multi-head machines / versions for spirits and hot filling on request.
Note* if filling sugary products we would recommend an OIL Bath Filter to save from damaging the vacuum pump over time.
The oil bath vacuum filter is used to protect the vacuum pump on an FL02 filling machine. when using products containing sugar: fruit gins, liqueurs, cordials, etc.
It is positioned between vacuum pump and the liquid recovery vessel. The housing body is filled with Vaseline oil, sunflower oil or similar. The oil should be checked periodically and changed before it becomes saturated and dirty.
Note: there is no contact between oil and product.
Info sheet HERE
EnolMASTER multi-head stainless versions, see FL-02b HERE
Extra nozzles and spare seals, see FL-02c HERE
Delivery time normally 1 to 7 days
