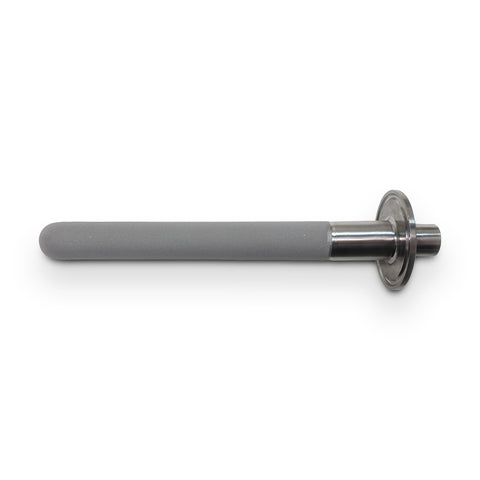

PR01 Carbonation Stone (Aerator Device)
Sintered stainless steel element: gas (typically oxygen or CO2) fed in through a side-branch dissolves in liquid flowing around the element.
Standard device has a 150mm long sintered stainless steel element with 2-micron pore size. Typically, sufficient for oxygenation of wort, or carbonation of beer or water to 2.5 volumes at 20 to 30 litres per minute.
Efficiency of dissolution of gas depends on gas pressure, liquid temperature, flow rate and line pressure. Usual technique is to set up the device in a recirculation loop, pumping from and back to a tank.
Specifications
- Assembly includes: Sinter element, mini ball valve, offset tee, clamp and gasket
- Material: Stainless steel
- Carbonation stone length: 150mm
- Carbonation stone outside diameter: 20mm
- Connection: 1.5" Tri Clamp
- Gas inlet: 1/4" BSPf
Tri Clamp Sightglass available HERE
Usually available on a next day delivery service
Other configurations on request - please CONTACT US
