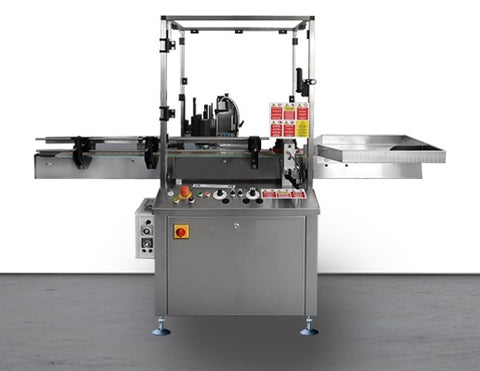

LA08 Automatic Labeller (1000 bph)
Capacity: 1000 bottle per hour MAXIMUM (Fixed speed)
- Complete safety covers with plexiglass panel
- Infeed screw
- In-line machine with 1 labelling station
- Capable of front+back label (printed alternately from the same roll)
- Labelling units motion by stepping motors
- Labelling units supplied with a loading plate for a roll Ø.280mm max.
- Labelling units adjustable in height, for easy adjustment for different labels and bottles
- Start signal for label release by precision sensor
- Speed of labelling units synchronized with the speed of the machine
- Machine base-frame completely covered with stainless steel plate
- Aluminium parts covered with anti-rust painting
Max. front label height : 150 mm.
Conveyor chain section: W.100xH.120mm – for s/s chain 82.5mm - Standard height of conveyor from floor: 1.000 mm (adjustable +/-50mm) - Standard Voltage: 380/50HZ/24Volts
see info sheet HERE
Video HERE
NOT AVAILABLE TO BUY ONLINE: please CONTACT US to order
Delivery time normally 7 to 21 days
