Liquid is filtered through a disposable cylindrical cartridge installed in the housing. Typical applications are clarification and  'sterile' filtration of beverages, de-chlorination of process water, powder 'trap' filtration, bottle rinse fluid filtration.

Clarity/removal is determined by the cartridge grade and construction material, and absolute grades of cartridge down to 0.2micron are available for true sterile filtration. Pre-filters are usually of the 'depth-media' type.

Liquid must be fed from a pressure tank, or via a pump, at a controlled flow rate (rule of thumb: maximum 5 litres per minute per 10-inch)

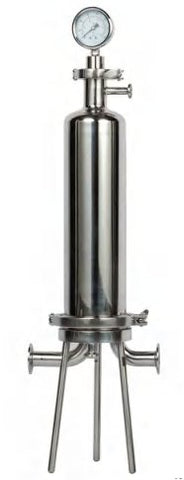

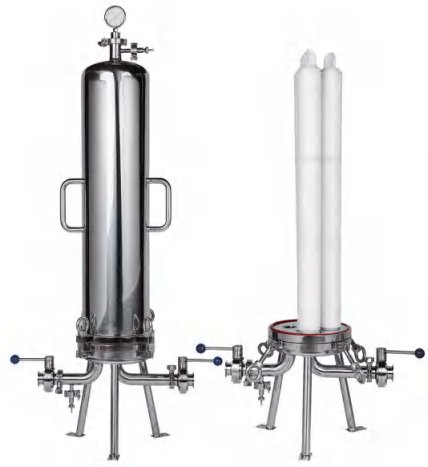

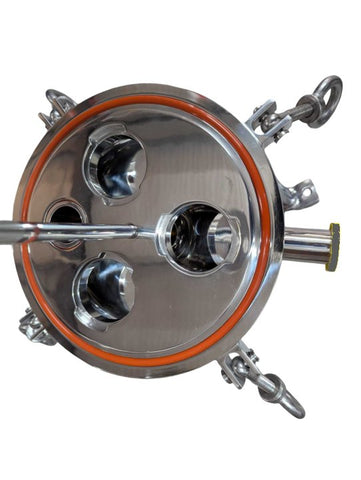

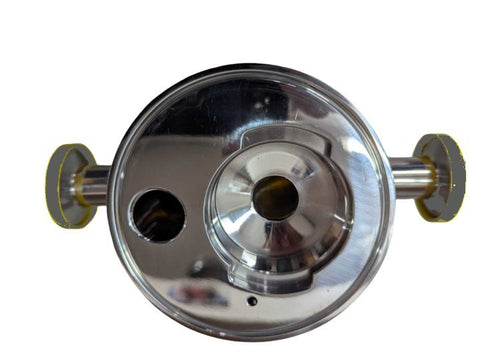

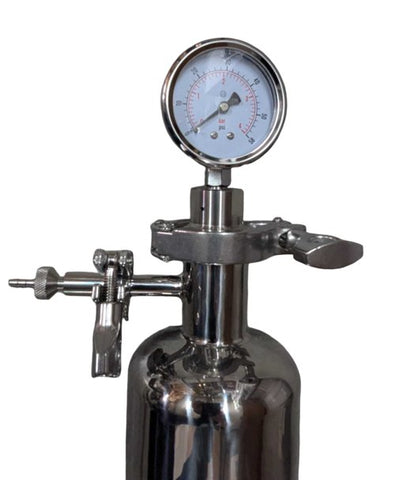

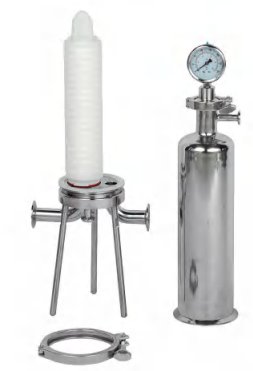

We can supply individual filter housings or complete units ready-to-use, with hygienic pressure gauges, vent valves, drain/sample valve, TriClamp connections, on legs.  Hygienic polished internals, industry standard ‘code 7’ double 0-ring bayonet-lock cartridge fitting.

Inlet and outlet fittings are 1.5-inch triclamp as standard, though adaptors are available to other fittings, e.g. RJT.

CONTACT US for pricing and information on multiple housing units, other sizes and specification, and for cartridge supplies

Info sheet HERE

Delivery time normally 1 to 21 days
